TYPE 101
FORMULA 1

.

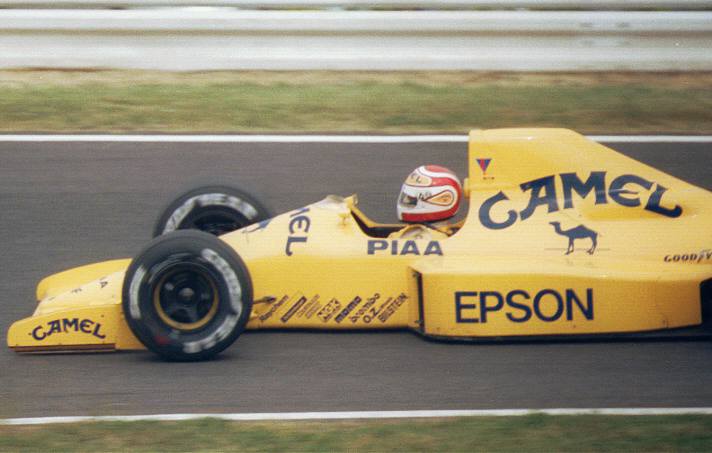

TYPE 101   1989
Formula 1

Engine: Judd DV V8, 3496cc-------------------------------------
610 bhp at 11,000 rpm----------------------
Gearbox: Lotus - Hewland 6- speed----------------------------
Chassis: Carbon / Kevlar monocoque ------------------------
Front Suspension:  Pull rods, double wishbones,-------
 and inboard coil spring / damper units.------------------------
Rear Suspension: Pull-rods, double wishbones, -------
and inboard coil springs / damper units.---------------------
Wheelbase: 9 ft. 6 in.--------------------------------------------------
Front  Track: 5 ft. 11 in.---------------------------------------------
Rear Track: 5 ft. 6 in.-------------------------------------------------
Weight: 990 lbs.--------------------------------------------------------


The 1989 Frank Dernie designed Formula 1 car.-------------------
Powered by a Judd V8 and a planned Tickford 5 valve head.
Used front and rear pull rod suspension.-----------------------------
.
.

.

.
