TYPE
14
Production
GT Car
.
.
|
.
LOTUS ELITE
( 1957-1963 )
Production GT
.
Engine: Conventry
Climax FWE1216cc----
Gearbox: BMC
B-series with alloy casting
Front Suspension:
Double Wishbones---
and Coil Spring / Damper Units.----------------------
Rear Suspension:
Chapman struts---------
incorporating
Coil Spring / Damper Units,
controlled vertically
by hub castings,------
trailing radius
arms, and fixed length------
half-shafts.--------------------------------------------
Wheelbase: 7
ft. 4.25 in.-------------------------
Front Track:
3 ft. 11 in.---------------------------
Rear Track: 4
ft. 0.25 in.-------------------------
Length: 12 ft.
4 in.---------------------------------
Width: 4 ft.
11.25 in.------------------------------
Height: 3 ft.
10.5 in.------------------------------
Weight: 1325
lbs.---------------------------------
.
The Elite was the first closed passenger---
car offered by Lotus.--------------------------------

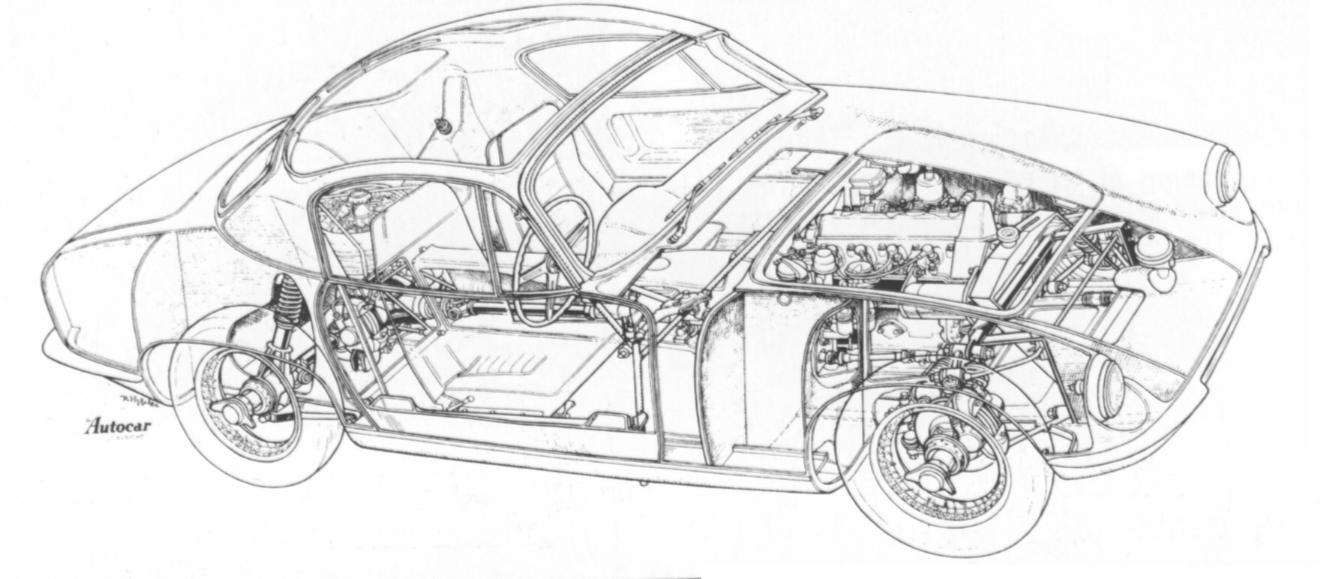

It was technologically advanced using-----
a glass-fibre monocoque chassis made---
of eight box sections.-------------------------------
It has a Drag Coefficient of 0.29 Cd, which
is better than most any current road car !----

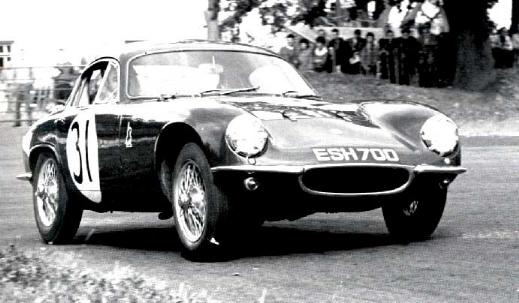

Winner in class
at LeMans 24 hour races.
.
|
|
|
|
.
|
|
 -
|
|
.
.
.
|
|
