TYPE
16
FORMULA
1
.
.
|
.
TYPE 16
1958 to 1960
Formula 1 and
Formula 2
.
Engine:
Coventry Climax FPF 2.0 & 2.2 liter
Gearbox: Lotus
5-speed--------------------------

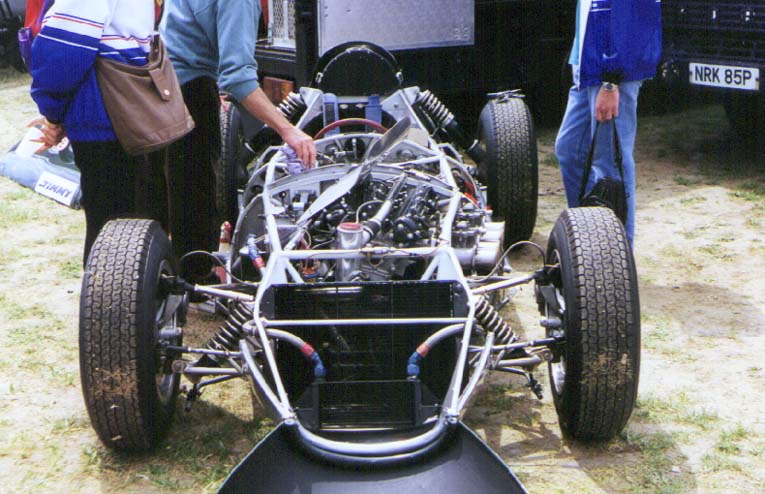

Chassis: Multi-tubular
space frame----------
Front Suspension:
Double Wishbones---
and Coil Spring
/ Damper Units.--------------
Rear Suspension:
Strut system and-------
Coil Spring /
damper units, controlled-----
vertically
by hub castings, forward----------
radius
arms, and fixed length half-shafts.
Wheelbase: 7
ft. 4 in.-----------------------------
Front Track:
3 ft. 11 in.--------------------------
Rear Track: 3
ft.11 in.----------------------------
Length: 11 ft.
8 in.---------------------------------
Weight: 1080
lbs.----------------------------------
The car
was a formula car fashioned after the ------
Vanwall, which
was designed by Colin Chapman
for Tony Vandervel.-------------------------------------------
Uprated engined
cars were the first Lotus cars----
to compete in
Formula 1.------------------------------------
The cars broke
continually and failed to score-----
Lotus' first
F1 win.---------------------------------------------
.
|
|
|
|
|
|
.
.
.
|
|
