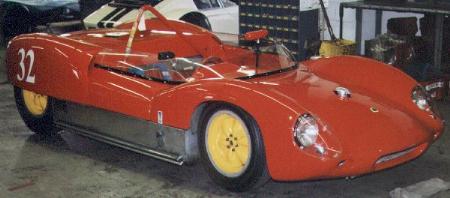

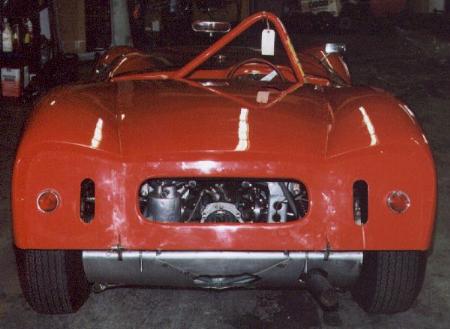

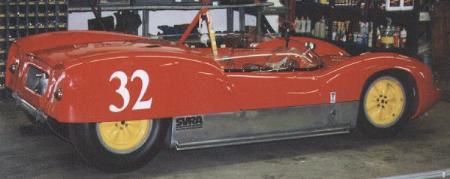

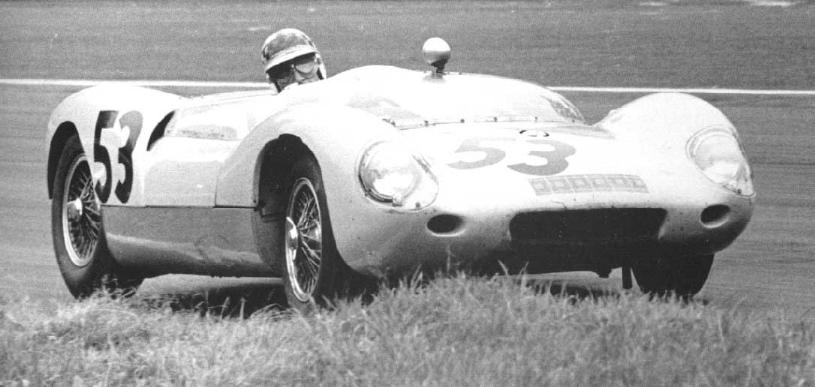

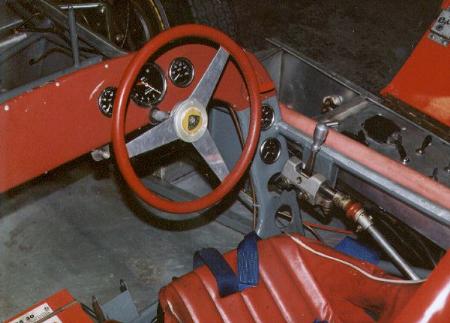

TYPE 19
SPORTS RACER
.

.
TYPE 19   1960 to 1962
Sports Racing Car

Engine: Coventry Climax FPF 2.5 liter------------
Gearbox: Lotus 5-speed--------------------------------
Chassis: Multi-tubular Space Frame---------------
Front Suspension: -Double Wishbones---------
 and-Coil Spring / Damper Units.----------------------
Rear Suspension: Un-splined half-shafts,------
reversed lower wishbones,  twin radius rods,
and Coil Spring / Damper Units.---------------------
Wheelbase: 7 ft. 6 in.-------------------------------------
Front Track: 4 ft. 1 in.------------------------------------
Rear Track: 4 ft. 1 in.-------------------------------------
Length: 11 ft. 9 in.----------------------------------------
Weight: 1000 lbs.------------------------------------------



The Type 18 was widened and formed into
Lotus' first mid-engined sports racer.--------
It was very quick, powered by Climax FPF
2.0 and 2.5 liter engines.----------------------
The 19B was built for Dan Gurney and------
powered by a Ford V8.-----------------------------
.
.

.

.
