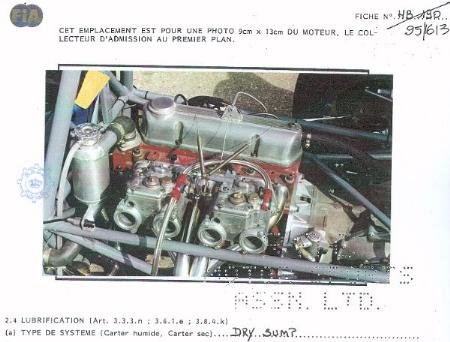

Engine: Cosworth
Ford 105E------------------------- Gearbox: Renault
4 speed----------------------------- Chassis: Multi-tubular

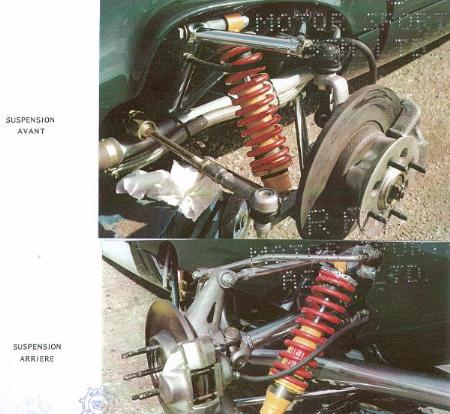

Space Frame--------------- Front Suspension:
Double Wishbones--------- and-Coil
Spring / Damper Units.---------------------- Rear Suspension:reversed
lower wishbones, ------Un-splined
half-shafts providing traverse location, ---
twin radius rods, and Coil Spring / Damper Units. Wheelbase: 7
ft. 6 in.------------------------------------- Front Track:
4 ft. 1 in.------------------------------------ Rear Track: 4
ft. 0 in.------------------------------------- Length: 11 ft.
7 in.---------------------------------------- Weight: 805 lbs.-------------------------------------------

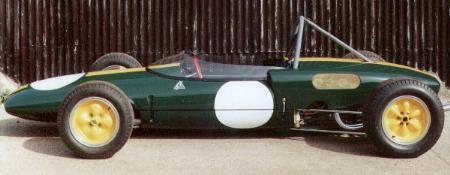

Formula Junior
replacement for the Type 18.---- Still used the
half shafts as the upper suspension link in
the rear.------------------------------------------------------- Used fiberglass
panels for the bodywork.---------- Dominated
the class powered by a Ford 105E,--- tuned by
Cosworth.----------------------------------------------- ----Sent
to the U.S. powered by a Ford 1500cc derivative. .
