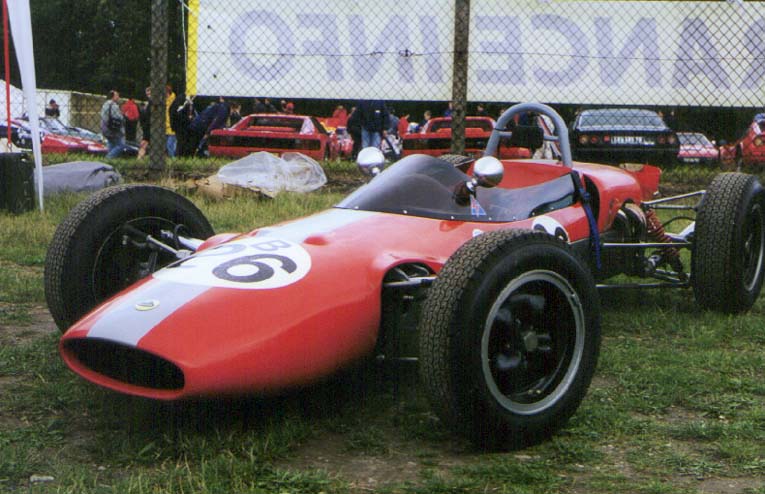

TYPE 27    1963
Formula Junior

Engine: Cosworth Ford 1097cc-------------------------------------
Gearbox: Hewland Mk.4  5-speed-----------------------------------
Chassis: Monocoque constructed from 18-guage----------
aluminum inner panels, with fabricated steel front and---
rear bulkheads, aluminum sheet center bulkhead,--------
and rolled aluminum outer panels.--------------------------------
Front Suspension: Upper cantilever rocking arms,-------
lower wishbones,-& inboard coil spring / damper units.
Rear Suspension: single top links, twin radius rods------
reversed lower wishbones, and outboard coil spring----
 & damper units.-----------------------------------------------------------
Wheelbase: 7 ft. 6 in.----------------------------------------------------
Maximum Track: 4 ft. 3.5 in.----------------------------------------
Length: 11 ft. 7 in.------------------------------------------------------
Weight: 880 lbs.---------------------------------------------------------

A monocoque Formula Junior that has front rocker arm
suspension with lower wishbones and rear suspension
utilizing twin radius arms with lower wishbones and-----
 upper links.------------------------------------------------------------------
Initially fiberglass was used for the tub paneling that----
was later replaced by alloy panels.--------------------------------
