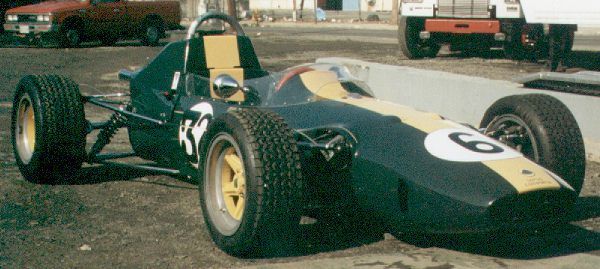

TYPE 32
FORMULA 2
.

.
TYPE 32   1964
Formula 2 and Tasman

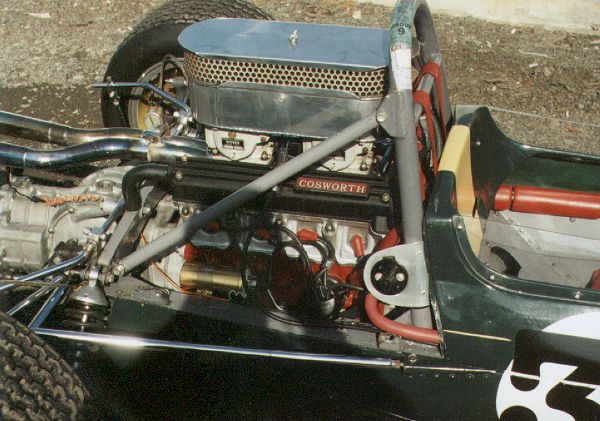

Engine: Cosworth Ford 998cc, 115 bhp-------------------------
Gearbox: Hewland Mk.4  5-speed----------------------------------
Chassis: Monocoque constructed from 18-guage---------
aluminum inner panels, with fabricated steel front and--
rear bulkheads, aluminum sheet center bulkhead,--------
and rolled aluminum outer panels.--------------------------------
Front Suspension: Upper cantilever rocking arms,-------
lower wishbones,-& inboard coil spring / damper units.
Rear Suspension: single top links, twin radius rods------
reversed lower wishbones, and outboard coil spring-----
 & damper units.-------------------------------------------------------------
Wheelbase: 7 ft. 6 in.------------------------------------------------------
Maximum Track: 4 ft. 3.5 in.--------------------------------------------
Length: 11 ft. 7 in.---------------------------------------------------------
Weight: 880 lbs.------------------------------------------------------------



Using a monocoque chassis powered by Cosworth's
new 998cc SCA engine.--------------------------------------------
Based upon a Lotus 27 with front suspension similar
 to the Lotus 25.----------------------------------------------------------
Driven by Jim Clark with a 2.5 Liter FPF in the Tasman
 series.------------------------------------------------------------------------
.
.

.

.
