TYPE 35
FORMULA 2
.

.

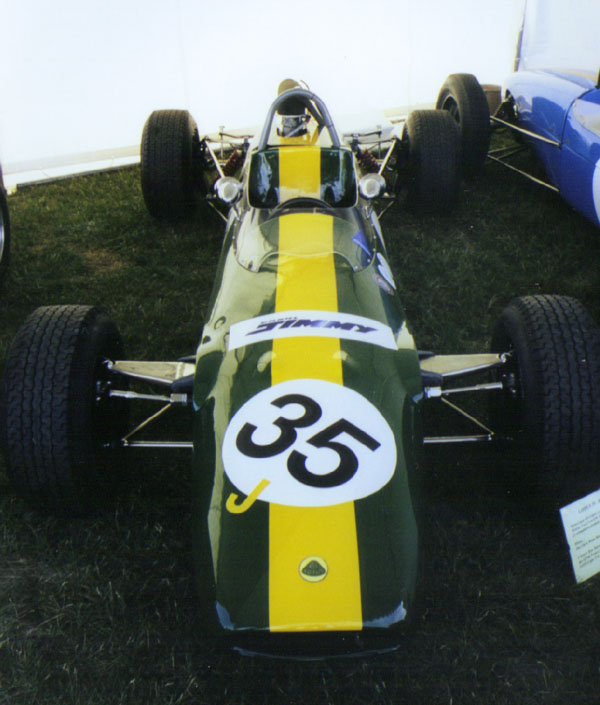

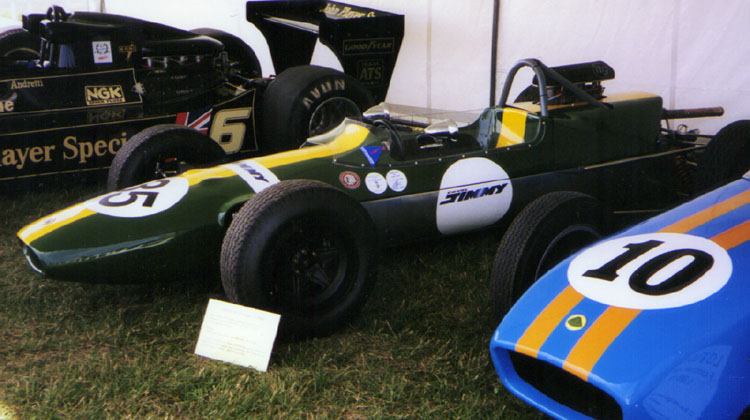

TYPE 35   1965
 Formula 2, 3, and Formula B

Engine: Cosworth Ford SCA 997cc------------------------------
Gearbox: Hewland Mk.4  5-speed----------------------------------
Chassis: Monocoque constructed from 18-guage---------
aluminum inner panels, with fabricated steel front and--
rear bulkheads, aluminum sheet center bulkhead,--------
and rolled aluminum outer panels.--------------------------------
Front Suspension: Upper cantilever rocking arms,-------
lower wishbones,-& inboard coil spring / damper units.
Rear Suspension: single top links, twin radius rods------
reversed lower wishbones, and outboard coil spring-----
 & damper units.-------------------------------------------------------------
Wheelbase: 7 ft. 9.5 in.---------------------------------------------------
Maximum Track: 4 ft. 4 in.----------------------------------------------
Length: 12 ft. 3 in.---------------------------------------------------------
Weight: 830 lbs.------------------------------------------------------------



A formula car for F2 and F3 developed from
the Type 27 and 32.-----------------------------------
.
.

.

.
