Engine: Ford 5.3
liter V8, 410 bhp--------------------------------- Gearbox: Hewland
LG500 5 speed-------------------------------- Chassis: Girder
Box-section center backbone,------------- with rear traverse
box-section.------------------------------------- Front Suspension:
Unequal-length double wishbones, -&
coil spring / damper units.------------------------------------------ ---Rear
Suspension: Upper wishbones, lower radius
rods--- reversed lower
wishbones, and outboard coil spring---- & damper
units.----------------------------------------------------------- Wheelbase: 7
ft. 10.5 in.------------------------------------------------ Front & Rear
Track: 4 ft. 5 in.---------------------------------------- Length: 13 ft.
9 in.-------------------------------------------------------- Height: 2 ft.
2.5 in.-------------------------------------------------------- Weight: 1370
lbs.--------------------------------------------------------
The Lotus 30

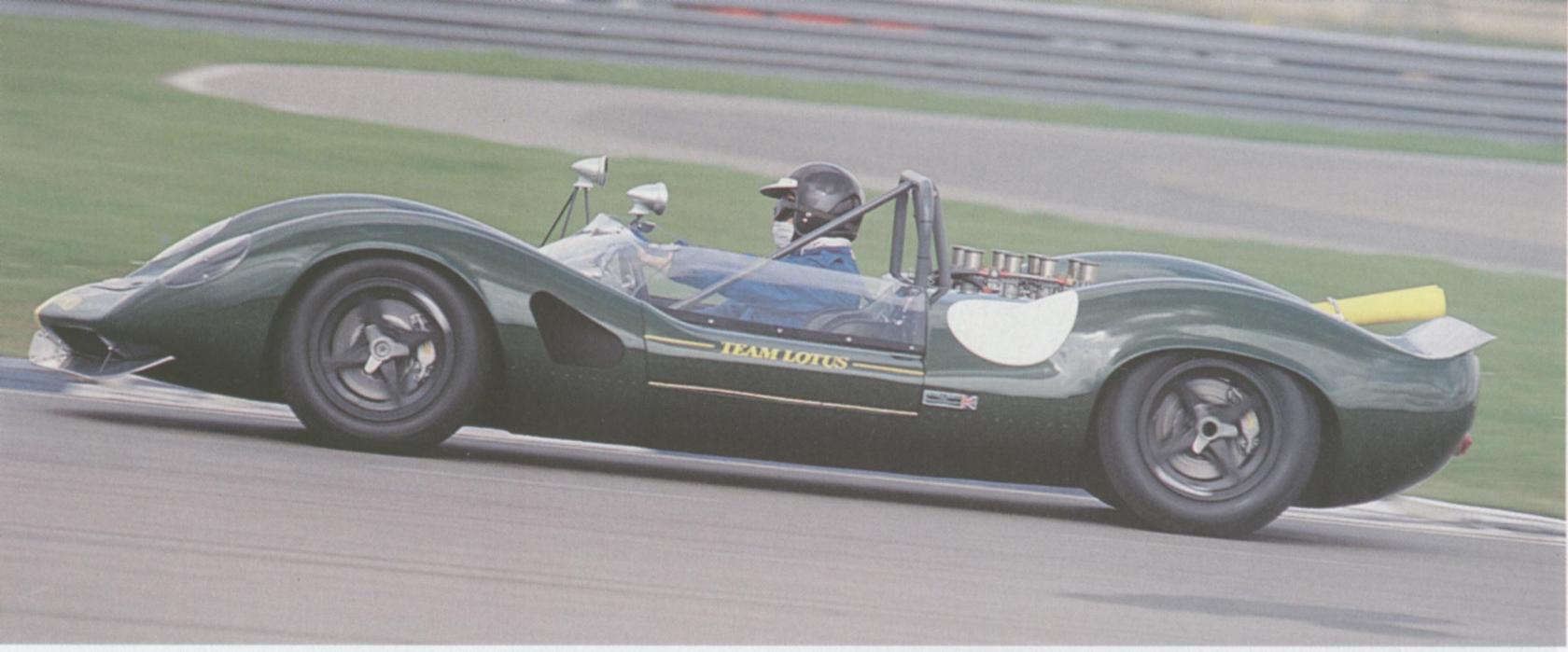

was strengthened with a stronger chassis and suspension.-------------------------------- The bodywork

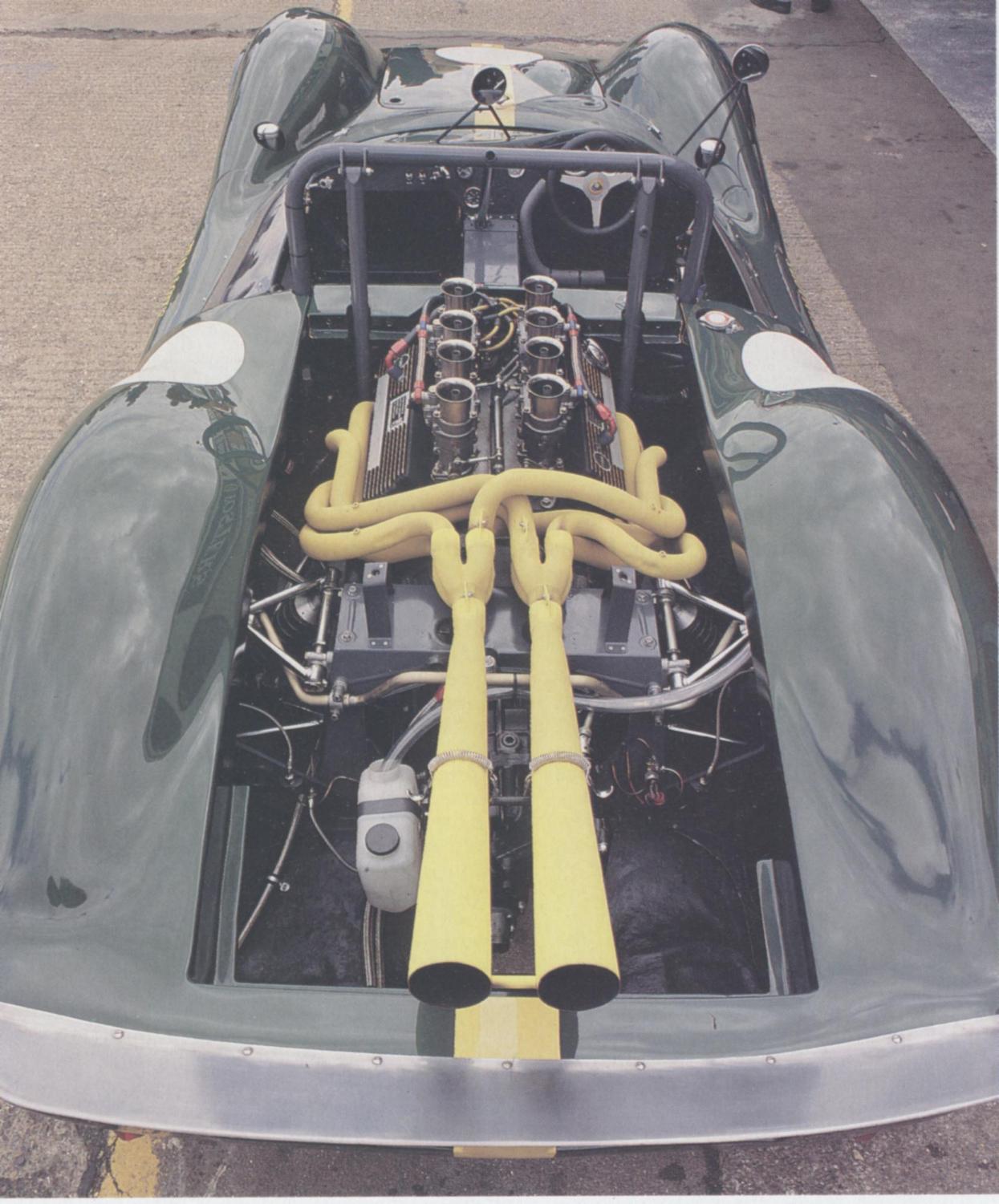

was distinctive with two angled stack exhausts
emerging from the rear deck.---- Only were 3 built.--------------------------------------------- .
