Engine: Lotus
Cosworth 13C 1594cc------------------------------- Gearbox: Hewland
FT200 5-speed------------------------------------ Chassis: Central
Box-section steel backbone with----------- fork extensions
at the rear, linked by light cross-member- Front Suspension:
unequal-length double wishbones,---- & coil spring
/ damper units.-------------------------------------------- Rear Suspension:
Upper tubular links, tubular upper,---- & lower
trailing arms, reversed lower wishbones,----------- fixed-length
half-shafts, and coil spring / damper units.---- Wheelbase: 7
ft. 7 in.------------------------------------------------------ Front Track:
4 ft. 5 in.----------------------------------------------------- Rear Track: 4
ft. 10 in.----------------------------------------------------- Length: 13 ft.
1.5 in.------------------------------------------------------- Width: 5 ft.
4 in.-------------------------------------------------------------- Height: 3 ft.
4 in.------------------------------------------------------------ Weight: 1000
lbs.----------------------------------------------------------

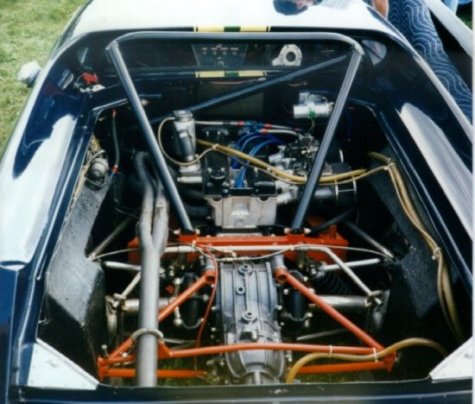

Powered by a
165 hp 1594cc Lotus Ford Twin Cam engine this was
the racing version of the Type 46.-- Light weight
alloy components were used in the --- suspension.--------------------------------------------------------- The 47 was successful
in the 2 liter class.-------------- .
