.Lotus Europa
Series 2
TYPE 54
.

.
.TYPE 54   1968
Production GT

Engine: Renault 16 1565cc----------------------------------------------
Gearbox: Renault 4-speed-----------------------------------------------
Chassis: detachable central Box-section steel backbone-
with fork extensions at the rear, linked by light cross-------
member.-------------------------------------------------------------------------
Front Suspension: unequal-length double wishbones,----
& coil spring / damper units.--------------------------------------------
Rear Suspension: Strut-type, with tubular lower link,-------
upper link formed by fixed-length half-shaft, & coil spring
 & damper units.--------------------------------------------------------------
Wheelbase: 7 ft. 8 in.------------------------------------------------------
Front Track: 4 ft. 5.5 in.--------------------------------------------------
Rear Track: 4 ft. 5 in.------------------------------------------------------
Length: 13 ft. 1.5 in.-------------------------------------------------------
Weight: 1500 lbs.----------------------------------------------------------

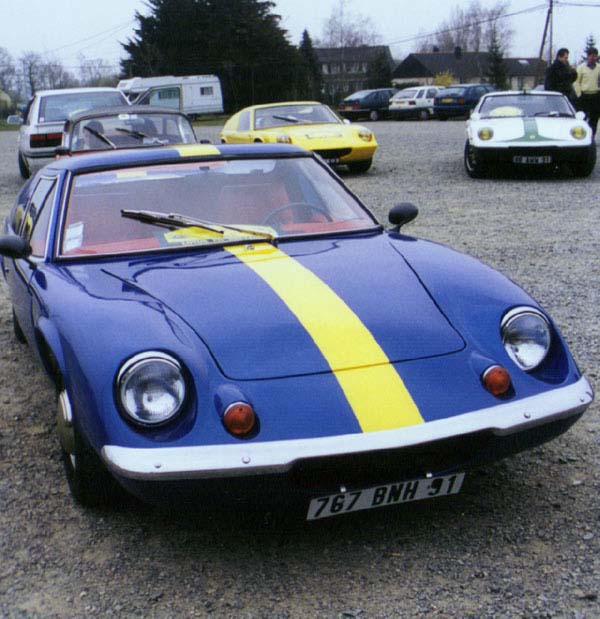

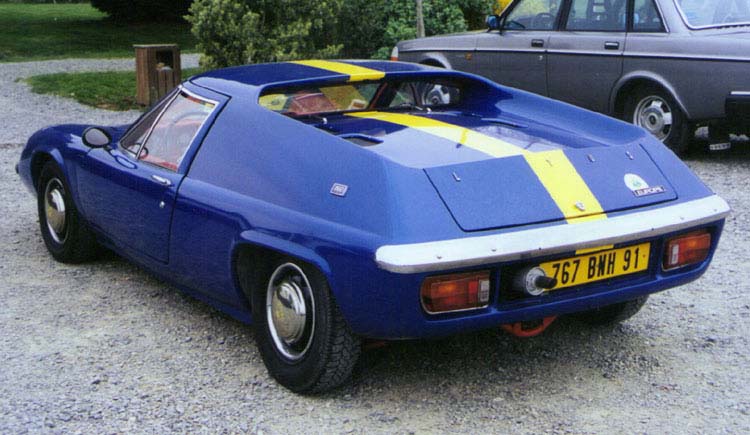

The Series 2 Europa, a separate chassis and
body and improved equipment and interior.--
.
.

.

.
