TYPE 59
FORMULA 3
.

.
TYPE 59, 59B 59F   1969 to 1970
Formula 2, 3, Ford

Engine: Holbay-Ford 997cc---------------------------------
Gearbox: Hewland 5-speed----------------------------------
Chassis: Multi-tubular Space Frame---------------------
Front Suspension: Double Wishbones----------------
 and-Coil Spring / Damper Units.----------------------------
Rear Suspension: reversed lower wishbones,------
single upper links, twin radius rods, and--------------
Coil Spring-/ Damper Units.----------------------------------
Wheelbase: 7 ft. 8.75 in.----------------------------------------
Maximum Track: 4 ft. 8 in.-------------------------------------
Weight: 790 lbs.---------------------------------------------------

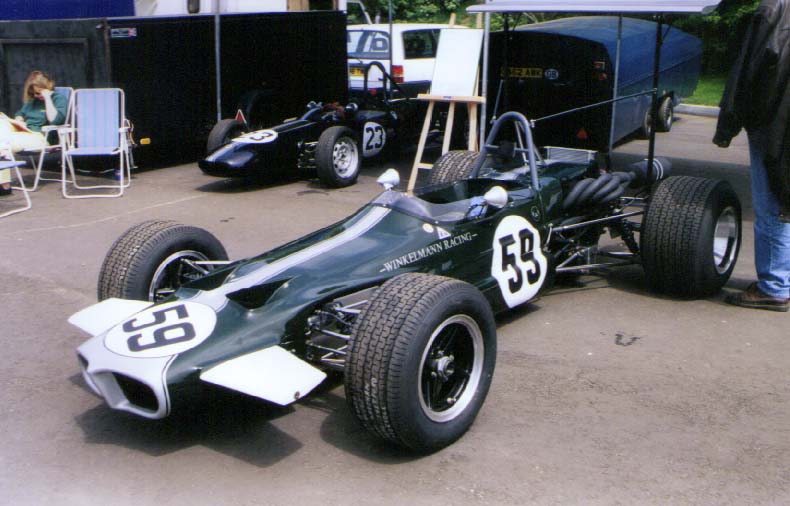

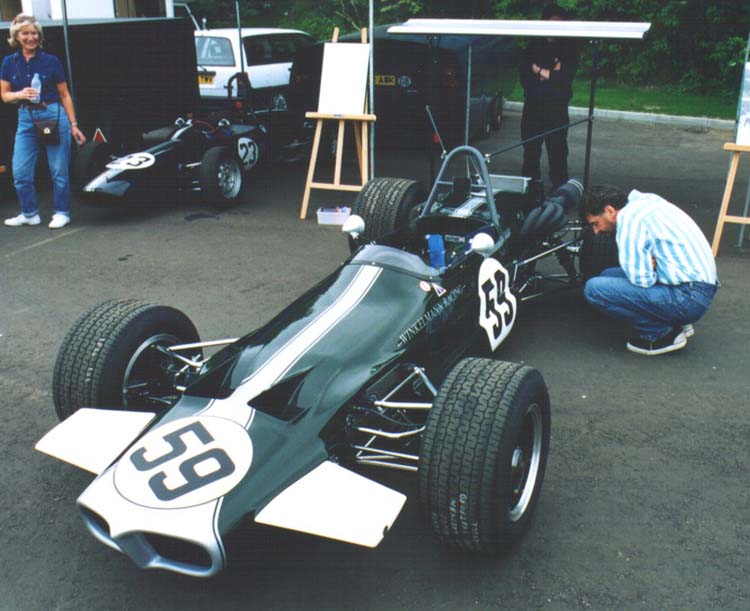

The Lotus 59 was prepared for Formula 3 and
powered by a 997cc Holbay Ford.------------------
The chassis was a tubular space frame with---
 fiberglass panels.------------------------------------------

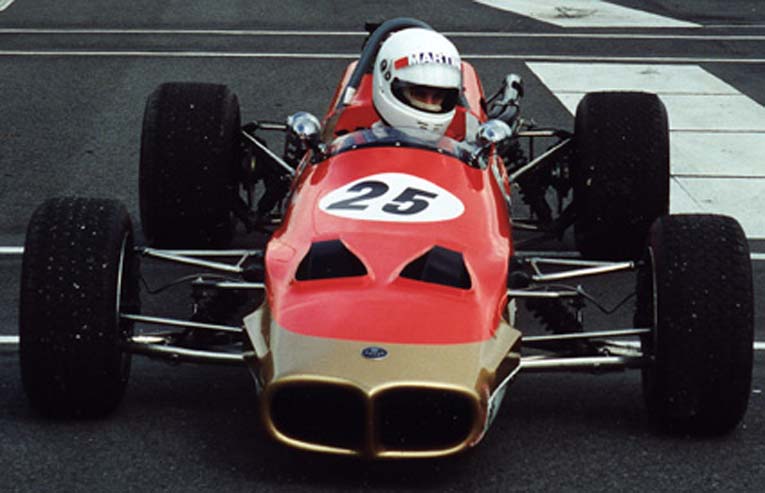

The car is best known for its distinctive nose.
.
.

.

.
