Engine: Lotus
Holbay LH / 105----------------------------- Gearbox: Hewland
Mk6, 4 speed-------------------------- Chassis: Multi-tubular
Space Frame--------------------- Front Suspension:
Double Wishbones---------------- and Coil
Spring / Damper Units.---------------------------- Rear Suspension:
reversed lower wishbones,------ upper links,
twin radius rods, and Coil Spring------- &
Damper Units.---------------------------------------------------- Wheelbase: 7
ft. 6 in.-------------------------------------------- Front & Rear
Track: 4 ft. 3.5 in.---------------------------- Length: 12 ft.
6 in.----------------------------------------------- Weight: 750 lbs.--------------------------------------------------

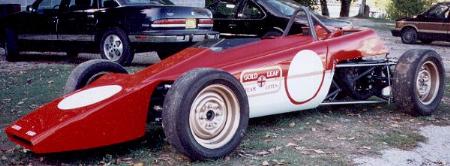

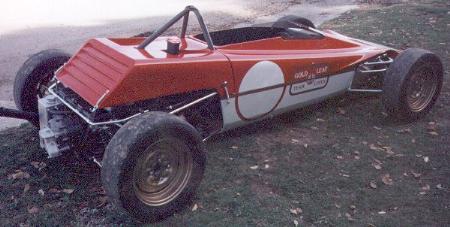

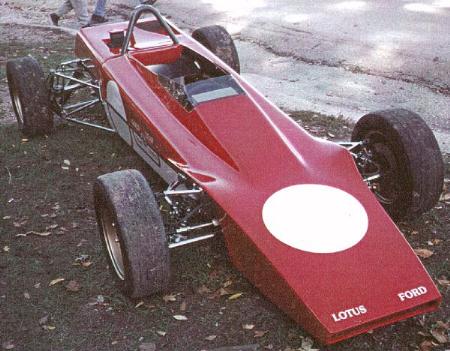

A wedge shaped
Formula Ford with multi-tubular space frame and
stress steel undertray.-------------- The car was successfully
used for racing and for Russell's driving
schools.---------------------------------- .
