EUROPA
TYPE 62
SPORTS RACER
.

.
TYPE 62, 1969   1969
Prototype

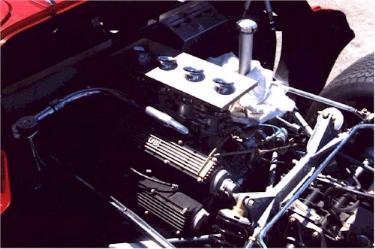

Engine: Lotus LV-220 1995cc DOHC, 220 hp--------
Gearbox: ZF 5DS2  5 speed----------------------------------
Chassis: Multi-tubular Space Frame---------------------
Front Suspension: Double Wishbones----------------
 and Coil Spring / Damper Units.----------------------------
Rear Suspension: reversed lower wishbones,------
single upper links, twin radius rods, and --------------
  Coil Spring /  Damper Units.-----------------------------------
Wheelbase: 7 ft. 7 in.--------------------------------------------
Front & Rear Track: 4 ft. 4 in.-------------------------------
Length: 12 ft. 10 in.----------------------------------------------
Weight: 1210 lbs.-------------------------------------------------

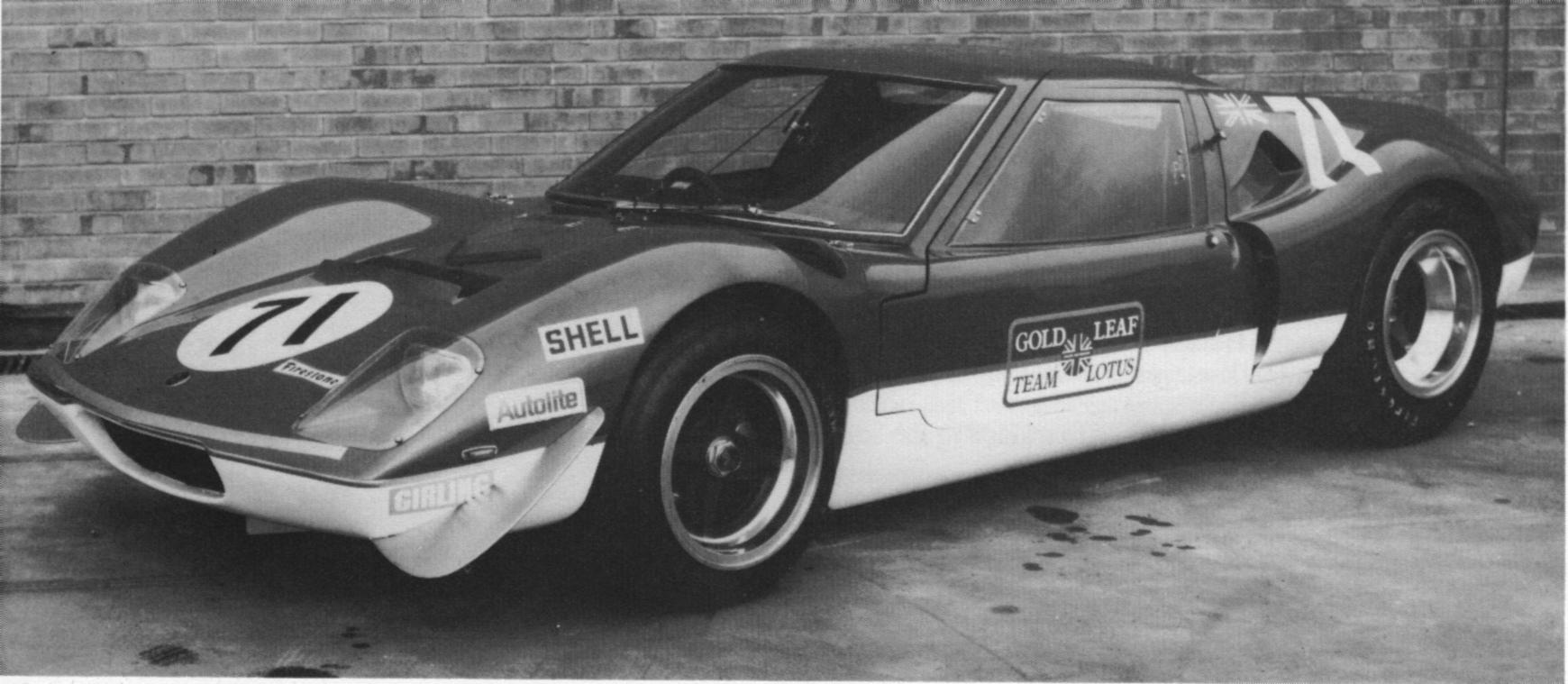

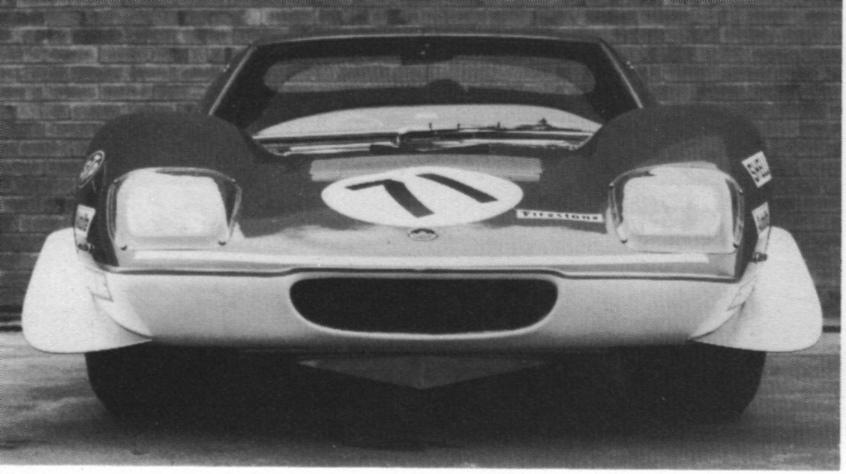

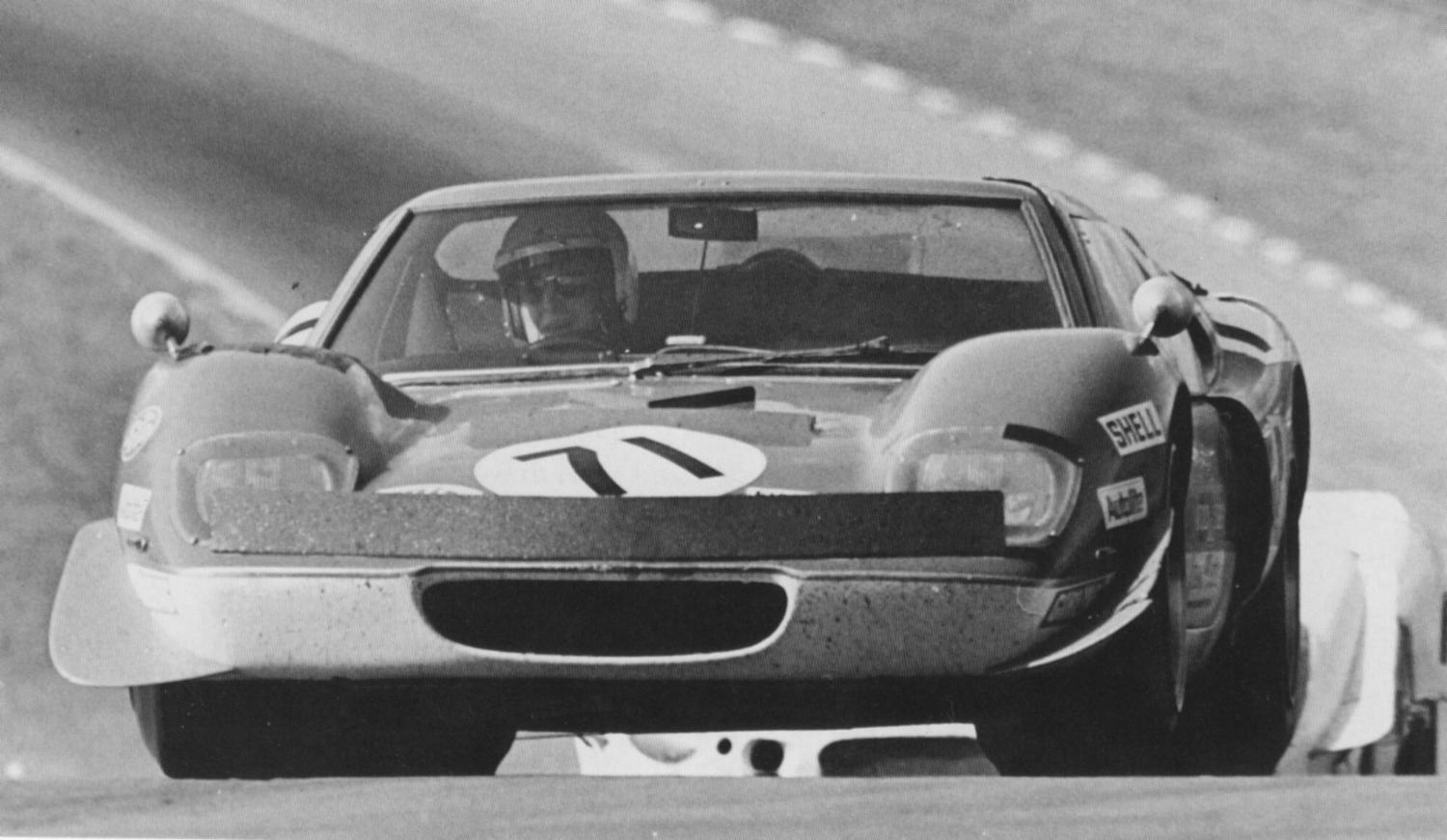

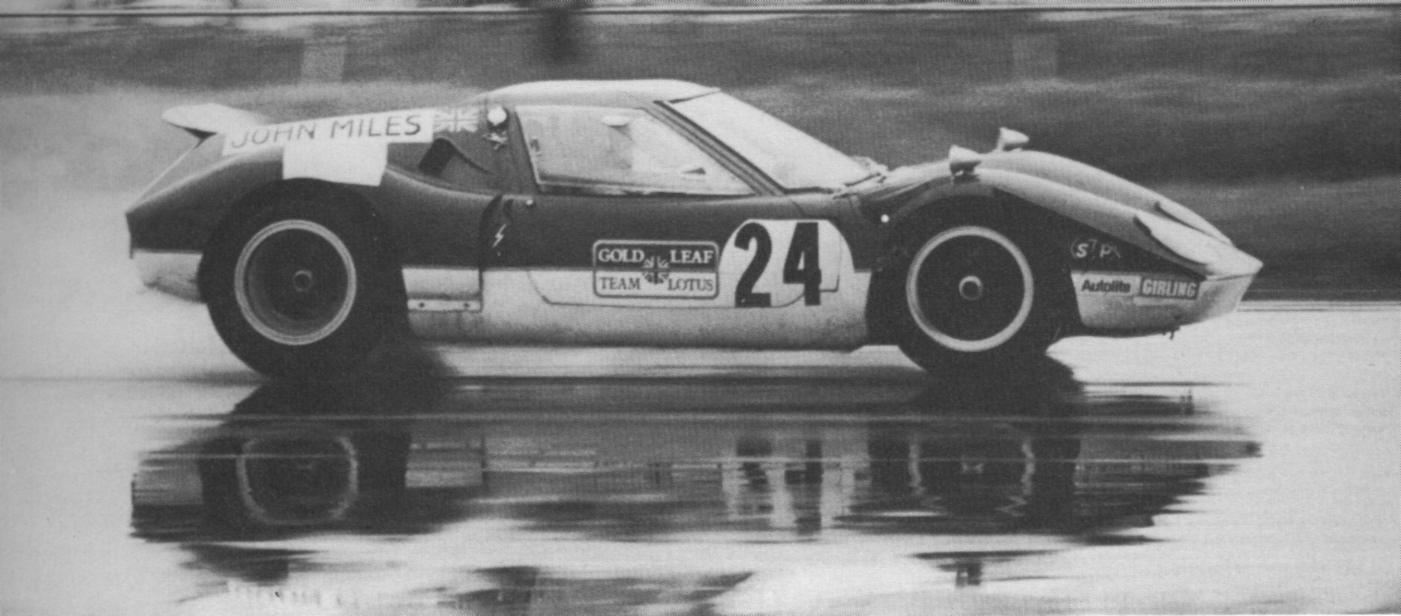

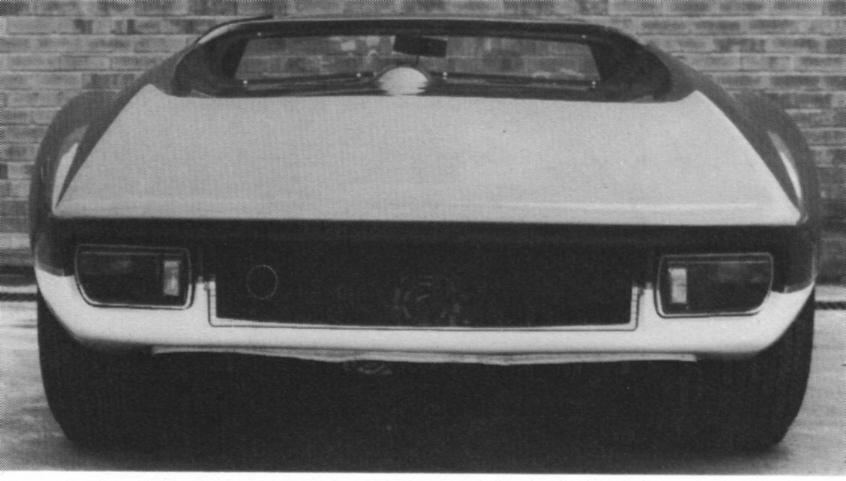

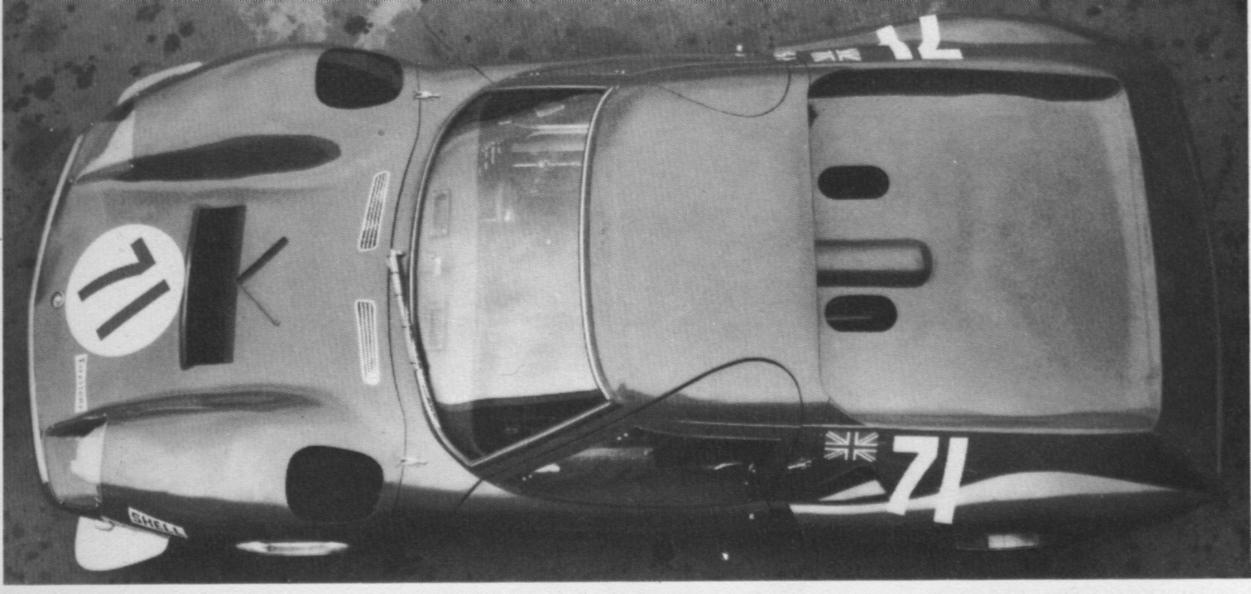

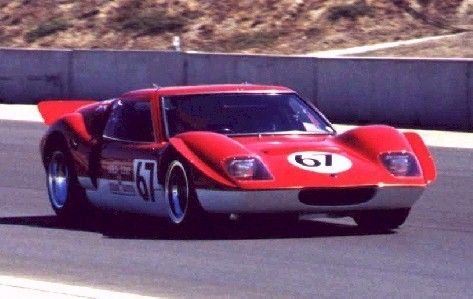

A tubular space framed Europa coupe with a 1990cc
 220bhp Vauxhall based slant four engine and used---
  double wishbone suspension at both front and rear.--
Only 2 built.-------------------------------------------------------------
.
.

.

.
