TYPE 68
FORMULA A
.

.
TYPE 68   1969
Formula A and 5000

Engine: Ford Boss 302 V8----------------------------------
Gearbox: Hewland LG600  4- speed--------------------
Chassis: Wedge - shaped monocoque----------------
Front Suspension: Double Wishbones---------------
 and Coil Spring / Damper Units.---------------------------
Rear Suspension: reversed lower wishbones,-----
single upper links, single lower links,------------------
single radius rods, and coil spring / damper units.
Wheelbase: 7 ft. 8.5 in.-----------------------------------------
Front & Rear Track: 4 ft. 8 in.-------------------------------

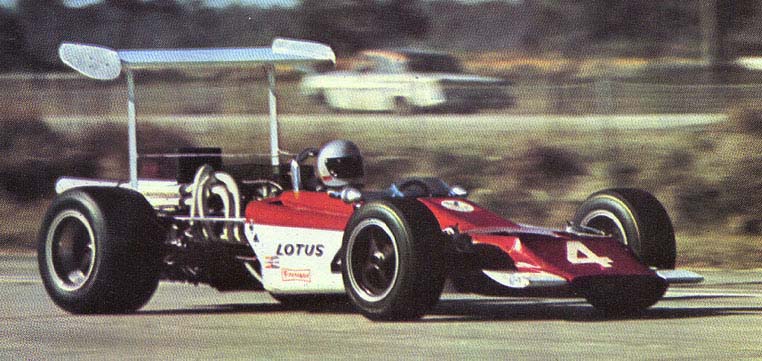

Prototype Formula A/5000. Wedge bodywork
and Ford 4945cc 480 bhp V8 powered.----------
Had a wedge shaped monocoque chassis.---
 Originally used tail radiators but were later----
moved to the nose.--------------------------------------
.
.

.

.
