ECLAT
TYPE 84
.

.
TYPE 84 - Eclat Series 2   1980 to 1982
Production GT car

Engine: Lotus 912 DOHC --------------------------------------------
Gearbox: Getrag 5-speed or Borg- Warner Automatic----
Chassis: Central box-section steel backbone---------------
Front Suspension: unequal-length double wishbones,
& coil spring / damper units.-----------------------------------------
Rear Suspension: Strut-type, with tubular lower -----------
wishbones,-& coil spring / damper units.-----------------------
Wheelbase: 8 ft. 1.8 in.--------------------------------------------------
Front Track: 4 ft. 10.5 in.-----------------------------------------------
Rear Track: 4 ft. 11 in.---------------------------------------------------
Length: 14 ft. 7.5 in.------------------------------------------------------
Weight: 2180 lbs.----------------------------------------------------------

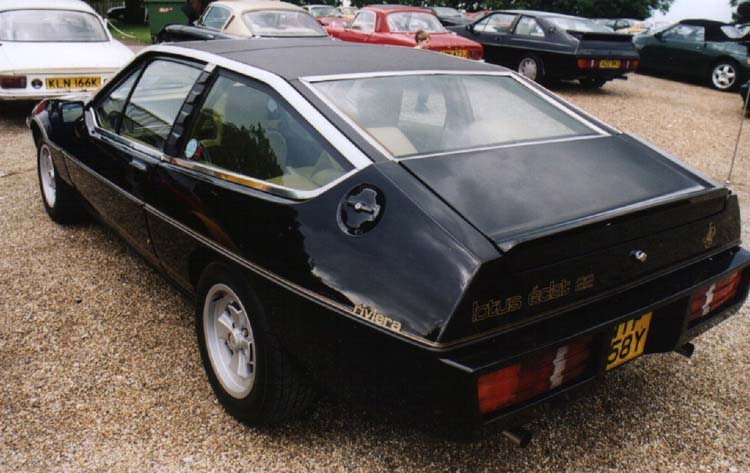

The Series 2 production of the Eclat.
Powered by 2.2 liter Lotus 912 engine
and used a Getrag 5 speed gearbox.
.
.

.

.
