Engine: Cosworth
Ford DFV-V8, 2993cc------------------- Gearbox: Hewland
FGA 5- speed------------------------------ Chassis: Twin
chassis, with inner Carbon-Kevlar------ monocoque,
and outer moulded Carbon-Kevlar----------- body.------------------------------------------------------------------------ Front Suspension:
Upper rocking arms, lower----------- wishbones,
and inboard coil spring / damper units.------ Rear Suspension:
Lower wishbones, upper rocking-- arms, and inboard
coil springs / damper units.----------- Wheelbase: 8
ft. 11 in.------------------------------------------------ Front Track:
5 ft. 10 in.---------------------------------------------- Rear Track: 5
ft. 3 in.-------------------------------------------------- Weight: 1150
lbs.------------------------------------------------------

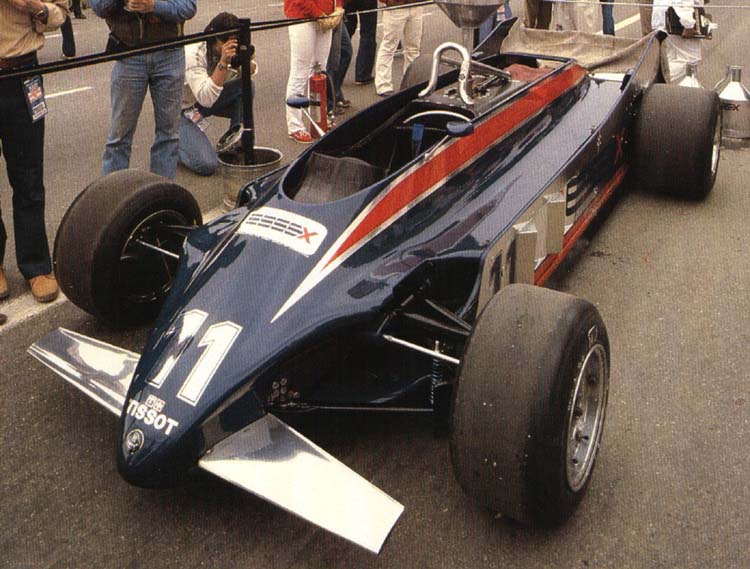

An improved version
of the Type 86 dual chassis car.------- Used a carbon
and kevlar monocoque primary chassis------- with
a secondary carbon composite aero dynamic chassis.-- Lotus and McLaren
were the first to use carbon composite technology.----------------------------------------------------------------------- Eventually it
was banned.--------------------------------------------------- .
