Engine: Cosworth
DFX V8, Turbocharged, 2643cc----------- Gearbox: Lotus
/ Hewland FGB---------------------------------------- Chassis: Carbon
/ Kevlar monocoque------------------------------ Front Suspension:
Pull rods, double wishbones,------------- & inboard
coil spring / damper units.-------------------------------- Rear Suspension:
Pull rods, double wishbones, and-------- inboard
coil spring / damper units.------------------------------------- Wheelbase: 9
ft. 2 in.------------------------------------------------------- Front Track:
5 ft. 7 in.------------------------------------------------------ Rear Track: 5
ft. 4 in.------------------------------------------------------- Weight: 1500
lbs.------------------------------------------------------------

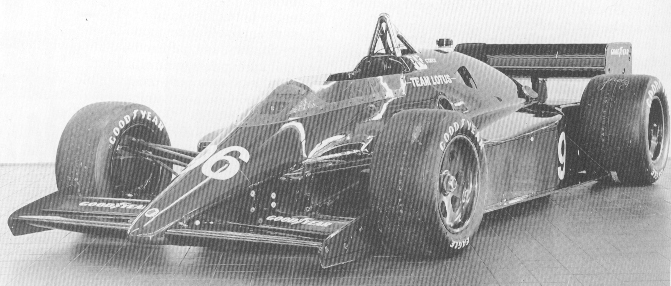

Roy Winkelmann
asked Lotus to build a car to run in
the American CART / Indy car series.-------------------------- The chassis was
a composite of carbon, Kevlar and- aluminum
honeycomb monocoque.-------------------------- Suspension was
similar to the 95T.-------------------------- The car was not
approved by CART, and the needed sponsorship
was never found.--------------------------------- .
