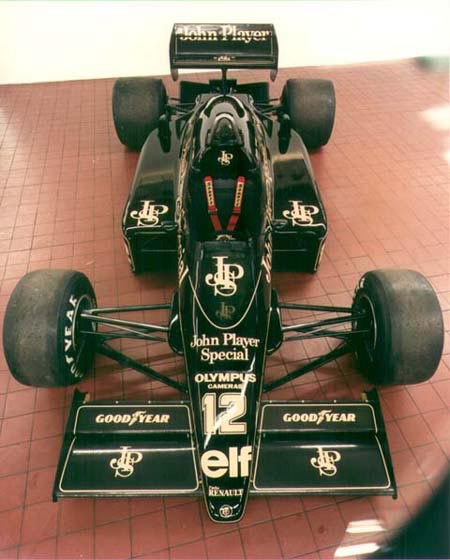

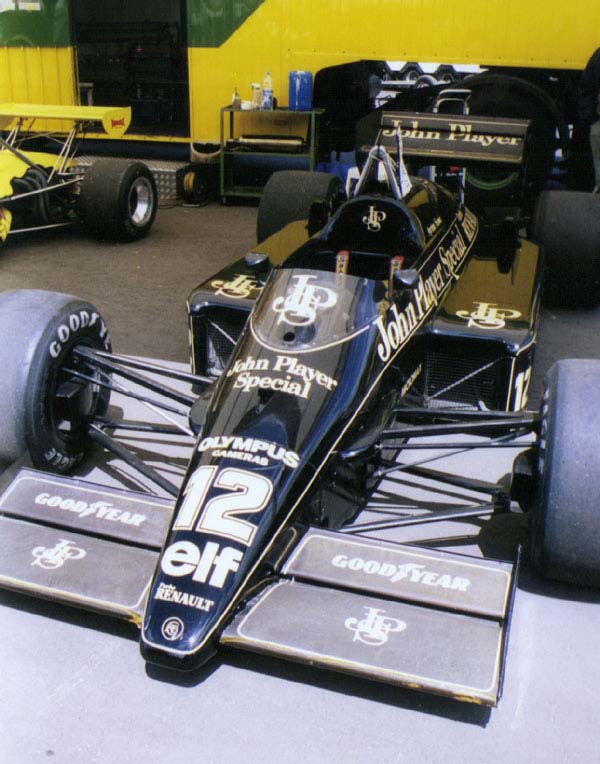

TYPE 98T
JOHN PLAYER SPECIAL
FORMULA 1

.
Type 98T   1986
Formula 1

Engine: Renault EF15B Turbo V6 1492cc--------------------
Gearbox: Hewland DGB  5- speed-------------------------------
Chassis: Carbon / Kevlar monocoque -----------------------
Front Suspension:  Pull rods, double wishbones,-------
 and inboard coil spring / damper units.------------------------
Rear Suspension: Pull-rods, double wishbones, -------
and inboard coil springs / damper units.---------------------
Wheelbase: 8 ft. 11 in.-------------------------------------------------
Front  Track: 5 ft. 10.9 in.-------------------------------------------
Rear Track: 5 ft. 3.7 in.------------------------------------------------
Weight: 1060 lbs.-------------------------------------------------------



A new Carbon / Kevlar monocoque construction method
 allowed the carbon/Kevlar to be molded into shapes ( not
  flat sheets ).---------------------------------------------------------------------
Pull rod suspension was used at both front and rear.------
.
.

.

.
